PVDF/PTFE PVC Coated T Tensile Car Parking Structure Shed Fire Resistance

Ask Lasest Price
Brand Name :	OEM & ODM
Model Number :	Garages, Canopies & Carports
Price :	$15.00/square meters 100-1999 square meters
MOQ :	1 Set

Add to Cart

Product Details
Company Profile

PVDF/PTFE PVC Coated T Tensile Car Parking Structure Shed Fire Resistance

Prefabricated Car Garage The Ultimate Solution for Bicycle Storage and Mobile Poultry Sheds

Products Description

Tensile Car Parking Structure

Tensile structure car parking is a new type of architectural structure with a beautiful surface and a dynamic appearance. Shades are required for car parking to protect the cars from not only the elements like sun, wind and water etc but also from bird droppings, dust, dirt etc. Tensile Car Park Shades provides all these function whilst not being eye sore i.e. they are aesthetically pleasing. PVDF coated fabrics for car parking shades gives good aesthetic look to the structure, have a long life, easy to clean and are treated to be resistant to fungus, mildew, bacteria etc.

Product advantages

√ Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
√ Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
√ Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.

√ Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.

Product advantages

√ Easy to Install: Faster and more cost-effective in comparison to traditional construction projects. √ Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun. √ Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.

Product advantages

√ ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity. √ Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE. √ Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

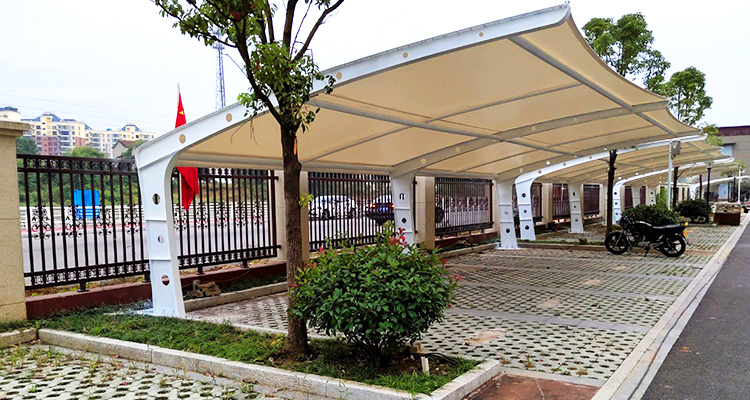

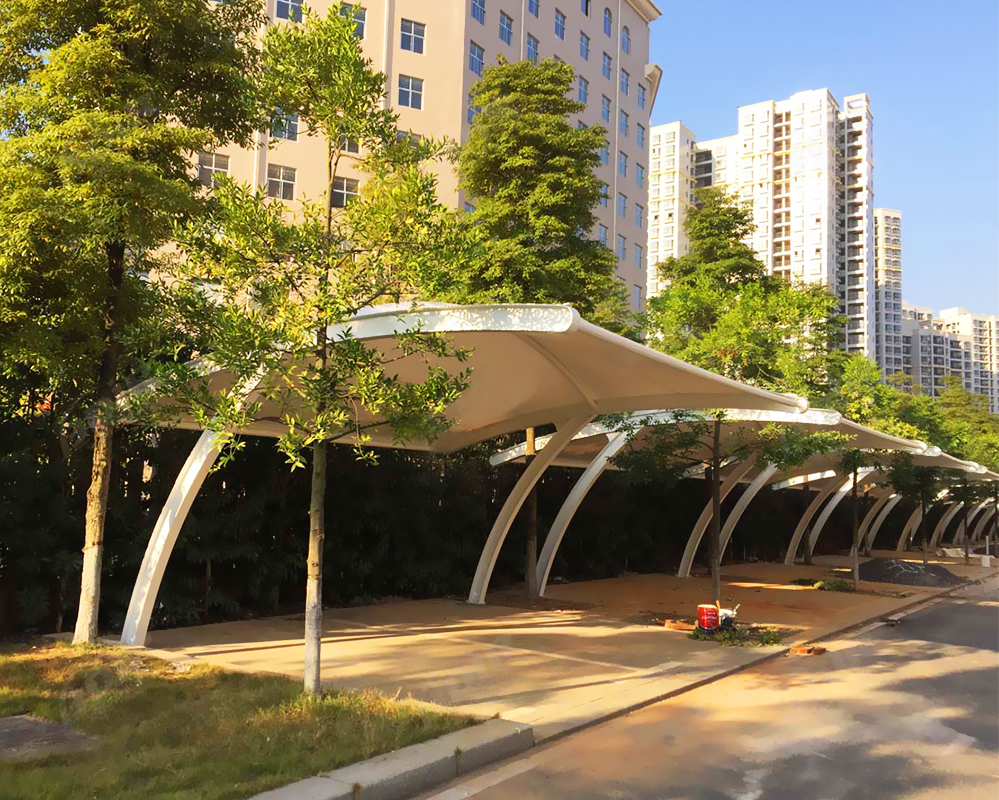

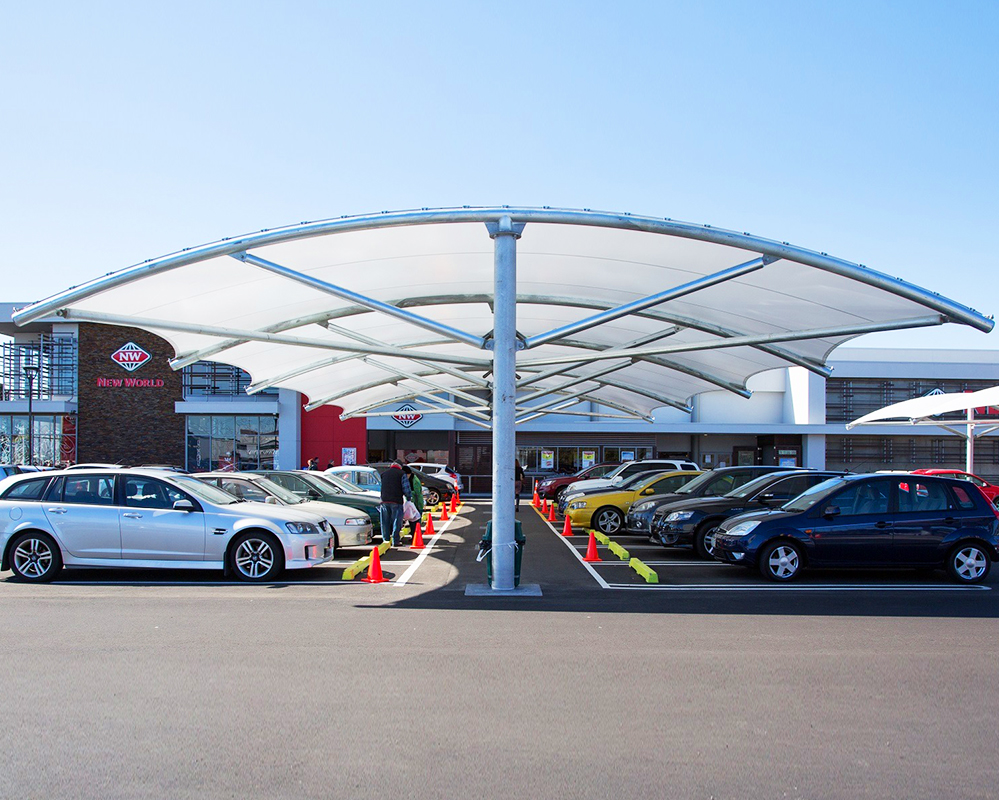

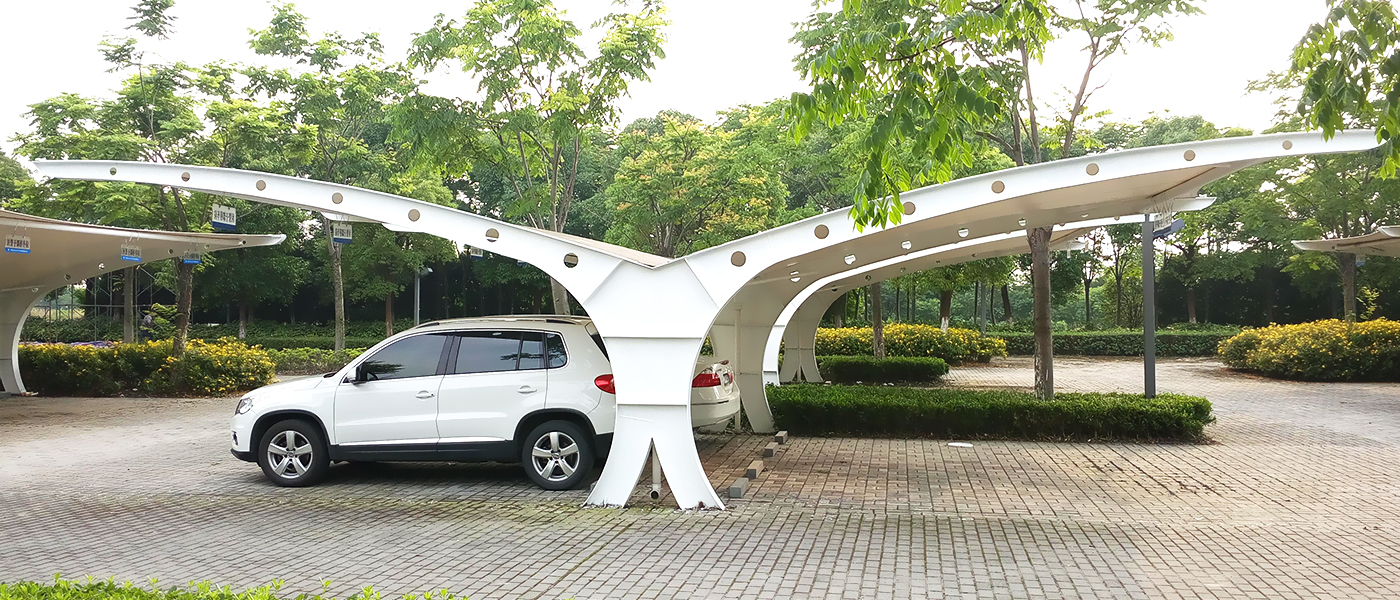

Installation case

Case 1 Entertainment Plaza

Case 2 Commercial Estate

Case 3 Stadiums and Parks

Case 4 Transportation Center

Item Name	Steel membrane structure parking shed
Frame Material	Hot Galvanized Steel Tube,Q235, 6-14(mm)
Roof cover	1100g/sqm PVDF
Color	Milky white
Ground Situation	Grassland,earth land,asphalt,cement ground,marble,etc.
Fixing Solution	Ground anchor, expandable bolt, weight plate, etc.
Features	UV Resistant, Waterproof, Self-cleaning, Fire Retardant (DIN4102, B1, M2, CFM)
Wind Load	Max.100km/h (can be reinforced)
Tensile Strength	4000 or more
Snow Load	85kg/Sqm
Temperature Index	-70 Degree Celsius to ~ +70 Degree Celsius
Waterproof Index	>3000mm
Certification	ISO/SGS/CE/TUV/BV/IFAI
Use Range	Parking area
Service Life	More Than 20 Years
transmission	20%

Membrane parameters
Base fabric	High strength low yarn polyester yarn, DIN EN 60001
Titer of yam(denier)	1300D, DIN EN ISO 2026
Yam Count(yam/cm)	12/12yan/cm, DIN EN 1049-2
Weave styie	Woven cloth P2/2, DIN ISO 9354
Weight op base fabric(g/㎡)	360g/㎡, DIN EN 12127
Total weight(g/㎡)	1250g/㎡, DIN EN LSO 2286-2
Total thickness(mm)	0.82mm
Tensile strength(N/5cm)	5300/5000N/5cm, DIN 53354
Tear strength(N)	800/700, DIN 53363
Adhesion(N/5cm)	>130N/5cm, DIN 53357
Threshold temperature	+70°C -30°C, DIN EN 1876-2
Surface treatment	PVDF
Flame retardancy	DIN4102B1, GB8624B1

Technical Details

Select material

The membranes are selected to meet the specific project requirements as well as our clients’ individual needs and desires. We offer a variety of materials with varying degrees of translucency, light reflectivity, UV and weather protection, and non-combustibility. Certain membranes offer self-cleaning surfaces, and all are easily maintained to preserve their appearance and ensure a long life. We use the best materials on the market, including vinyl coated polyester (PVC), TEFLON™-coated fiberglass (PTFE), and transparent structural clear foil (ETFE).

Why Choose Us to offer steel structure building:

1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world.

2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install.

3. We will send you extra bolts, purlins, panels in case any damage when install.

4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention.

5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon.

6.We will offer details packing list for every container when load so it will be easier to unload.

7. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer.

Steel Structure

Shandong Juhe Steel Co. LTD

Was founded in 2013. After more than 10 years of steady development, It has now become a high-tech, diversified, export-oriented international private enterprise integrating research and development, design, production, installation and construction and service. manufacture enterprises in China, also has waterproof anti-corrosion insulation engineering, construction curtain wall engineering, building engineering construction general contracting qualification, be included in the construction industry modernization production base in Shandong province. The core competitiveness of the company comes from the unremitting pursuit of technological breakthroughs. Now, there are more than 100 senior technical personnel of various kinds, and many universities and scientific research institutions to establish cooperative relations. With the help of internal and external intellectual resources, relying on steel structure, we continue to innovate in various aspects and achieve new breakthroughs.

Customer Album

FAQ

Carport Steel Structure Carport Prefabricated Car Garage Bicycle Storage Shed Mobile Poultry Shed

Q1: How long does it take to get my building? A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity) Q2: What are the benefits of Tensile Fabric Structures Portfolio? A: 1-Durable and with long lifespan. 2-Short construction period than concrete and wooden building. 3-Low cost and reusable. 4-High strength and light weight, has good seismic performance. 5-Widely used for multi-purpose buildings. Q3: Why choose JU HE? A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business. Q4: How can l get the quotation of the project? A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation. Q5: Do you offer designing service for us? A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building, supermarket, auto dealer shop, shipping mall, hotel etc. Q6: Do you provide samples? A: Yes, we could offer the sample for free but do not pay for the cost of transportation. Q7: What is your terms of payment ? A: L/C, T/T, and Western Union. Q8: How about your quality control? A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control. Q9: Can you provide the installation help? A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.
